Key Features:
● Linux OS, which supports multiple tasks and multiple applications
● Elegant and slim design, convenient swiping card vertically
● Leading ARM processor (400MHz), outstanding performance in mass data and EMV transactions
● 160MB memory, supports loading multiple applications
● Multiple choices of integrated communication modules, such as PSTN, TCP/IP and Wi-Fi
● Supports complete version SSL(Security Socket Layer)
● USB HOST
● Up to 3 RS232(optional)
● 5V@500mA output
● Supports remote download via NewTMS and FTP
● High speed thermal printer, up to 25 lines/sec, easy load style, adjustable print gray, supports printing dual-layer paper
● EMV2000(Level 1&2）PBOC2.0, RoHS approved；

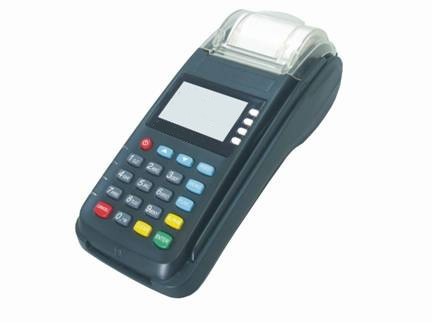

N7110 Specifications
|
Processor
|
32-bit CPU, ARM9, 400MHz
|
|
Memory
|
128MB FLASH, 32MB SDRAM
|
|
Display
|
128×64 pixel LCD, white LED backlight and specific icon
|
|
Keypad
|
4 ATM keys, 10 alphanumeric keys, 9 function keys,1 ON/OFF key
|
|
Magnetic Card Reader
|
Compliant with ISO7811, ISO7812; Track 1/2/3, bi-directional swipe;
|
|
IC Card Reader
|
1 user card (EMV4.2), supports SLE4442 / SLE4428 memory card
|
|
PSAM Slot
|
2 / 3 SAM slots, compliant with ISO7816; Supports PPS protocol
|
|
Contactless Card Reader (Optional)
|
Supports Mifare classic, Mifare Ultralight, Mifare DESFire, ISO 14443 A & B, SONY FeliCa
|
|
OS
|
Linux
|
|
Language
|
Supports Chinese (GB2312/GB18030), English, French, German, Latin, Russian, Arabic, Vietnam etc; supports Unicode;
|
|
Remote Download
|
Supports NewTMS or FTP remote download
|
|
Printer
|
High speed thermal printer
Easy-load style
Speed: up to 25 lines/sec (75mm/sec)
Paper width: 58 +0/-1mm
Paper roll outside diameter: 50mm
Adjustable print gray, supports dual-layer paper,
|
|
Internal MODEM (Optional)
|
Synchronous: V.22bis, V.29, supports 1200/2400/9600bps
Asynchronous: V.34, up to 33.6Kbps
Supports PPP dial, supports full SSLv2/3 TLSv1
|
|
Internal LAN (Optional)
|
10Base-T/100Base-T, supports full SSLv2/3 TLSv1
|
|
Internal Wi-Fi (Optional)
|
802.11b/g, supports full SSLv2/3 TLSv1
|
|
Peripheral Port
|
2 RS-232 (up to 3), 5V @ 500mA DC output
1 RJ11 for line, 1 RJ11 for phone
1 RJ45 for TCP/IP
|
|
USB
|
1 USB Host
|
|
Power Supply
|
Input: 100 ~ 240VAC, 50Hz/60Hz; Output: 12VDC, 3A
|
|
Working Environment
|
Temperature: 0℃ ~ 50℃(32℉ ~ 122℉); Humidity: 10% ~ 90% (non-condense)
|
|
Storage Environment
|
Temperature: -20℃ ~ 60℃(-4℉ ~ 140℉); Humidity: 5% ~ 95% (non-condense)
|
|
Dimensions
|
229mm x 98mm x 70mm (L × W × H)
|
|
Weight
|
600g
|
|
Certification
|
EMV4.2 Level 1 & 2，PBOC2.0
|
|
