Function |

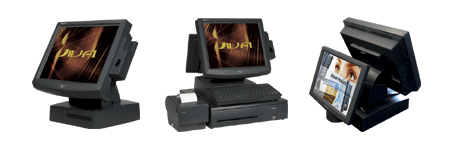

JIVA-8015 |
JIVA-8015i |
|
Processor |
Celeron 2.0 GHz (upgradable to P4-2.4Ghz) |
|
Memory |
Default 512MB DDR (Expandable to 2GB) |
|
Video memory |
16~128 MB shared memory |
|
Display |
15” TFT, 1024 x 768, 200 nits |
|
Tilt adjustment |
From 15° to 70° |
|
Touch sensor |
Resistive |
Infrared |
|
Base Stand |
Slim type or Universal type |
|
Touch resolution |
1024x1024, mouse emulation |
|
|
|
Hard disk drive |
Build-in 3.5”, 40GB |
|
Internal UPS |
Yes. (Battery optional) |
|
Mounting option |
Table top or wall mount |
|
Connectivity |
|
Audio Line Output |
Standard (with 2 speakers) |
|
VGA Port |
1x |
|
Serial Port |
4x |
|
Parallel Port |
1x |
|
CR Port |
1x |
|
USB Port |
6x |
|
PS/2 KB&MOUSE |
YES |
|
LAN Port |
10/100 MHz base Ethernet |
|
OS Support |
Microsoft Win 2000 / XP Pro / WEPOS |
|
Housing Color |
Black |
|
Physical dimensions |
|
Dimensions
(WXDXH) |
Slim type:
LCD @ 15°: 376mm(W) x 321mm(D) x 372mm(H) 14.8” x 12.6” x 14.6”
LCD @ 70°: 376mm(W) x 306mm(D) x 295mm(H) 14.8” x 12.0” x 11.6”
Universal type:
LCD @ 15°: 376mm(W) x321mm(D)x402mm(H)14.8” x12.6” x15.8”
LCD @70°: 376mm(W) x306mm(D)x325mm(H) 14.8” x12.0” x12.8” |
|
Weight |
Slim type:
9.2 kg (20.3 lbs) external power adaptor
Universal type:
10.6 kg(23.4 lbs.) internal power adaptor |
|
Electrical requirements |
AC adaptor: Input 100~240V, output DC 12V/150W |
|
Storage Condition |
-20°C +60°C; 10%RH ~ 80%RH; non-condensing; maximum wet bulb 28.9°C |
|
Operation Condition |
0°C~ +40°C; 20%RH~80%RH;non-condensing; maximum wet bulb 26°C |
|
Safety Certifications |
PSU: UL / VDE Terminal: FCC, CE (class A), RoHS |
|
Option peripherals |
|
KP-100 |
Mini footprint design security keyboard, 40 keys (24 programmable keys and ten key configuration) attachment. MSR, Smart card reader optional |
|
Total Keys |
40 keys |
|
Predefined keys |
0-9,＋,－; total 16 keys |
|
OS support |
Win98 / 2000 / XP pro / WEPOS / NT / DOS |
|
Code Programmable |
ASCII or SCAN code |
|
Programmable capacity |
1 to 255 characters per key |
|
Data Memory |
100 years data retention |
|
Power Source |
5V/200 mA max. from the PS/2 KB port |
|
MSR |
ISO 7811 option 2 tracks (1&2), 3 tracks (1,2&3) with software programmable parameter or JIS II, KB interface |
|
Smart Card Reader |
PC/SC 1.0; EMV level 1 |
|
SD-100 |
Includes: MSR /Smart Card reader /iButton reader |
|
MSR |
ISO 7811 option 2 tracks(1&2),3 tracks (1,2&3) or JIS II |
|
iButton Reader |
Programmed by RS232 interface, output through PS/2 KB or RS232 interface |
|
Smart Card Reader |
PC/SC 1.0; EMV level 1 |
|
SD-200 |
In USB interface, Includes: MSR, Optical finger print sensor |
|
MSR |
ISO 7811 option 2 tracks(1&2 or 2&3),3 tracks (1,2&3) |
|
Finger Print Sensor |
Optical type: Detection area: 14.6x18.1 mm/ Resolution: 512 dpi x 8 bit gray scale/ OS support: 2000/ XP / CE.NET / WEPOS / Linux |
|
BC-100U |
Bar Code Card Reader, USB interface |
|
LM-6101B |
12.1” color LCD TFT (1024x768) as second display with rotatable bracket on rear lower base |
|
LM-6301B |
15.1” color LCD TFT (1024x768) as second display with rotatable bracket on rear lower base |
|
PD-2501 |
11 mm 2 x 20 VFD display mounted on rear lower base |
|
PD-2602 |
9 mm 2 x 20 VFD display mounted on rear lower base, RS232 and USB interface option |
|
PD-305 |
2 by 20 LCD customer display, 5x7 dots matrix mounted on rear lower base |
|
PD-302 |
2 by 20 LCD customer display mounted at the back of main display top |
